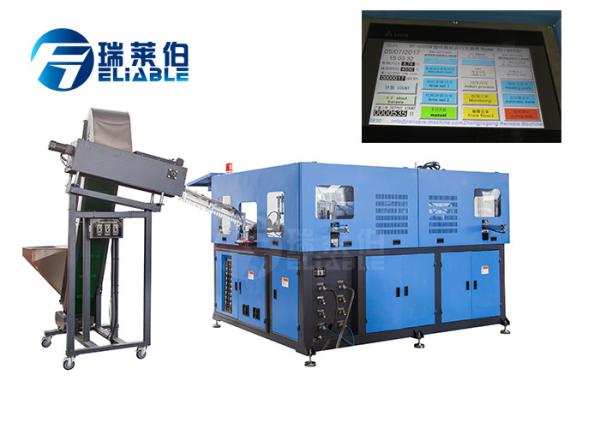

Best Service Full Automatic 200-2000ML Soda Water Bottle Blow Molding Machine Manufacturer
| RM-6000 |
| MOLDING | Clamping force | kg | 48000 |
| Clamping stroke | mm | 125 |
| Stretching stroke | mm | 350 |
| Bottom Stroke | mm | 30-70 |
| Cavity pitch | mm | 120 |
| Number of Cavity | Cavities | 6 |
| CONTAINER | Max.container volume | itr | 1.5 |
| Neck diameter range | mm | 18-38 |
| Max.container diameter | mm | 115 |
| Max.container height | mm | 320 |
| Carriage unit | pcs | 166 |
| THEORETICAL OUTPUT | bph | 6000 |
| ELECTRICAL SYSTEM | Total power | kw | 78 |
| Heating power | kw | 40 |
| Max.heating power | kw | 72 |
| AIRSYSTEM | Operating pressure | kg/cm2 | 7 |
| Air consuming | Itr/min | 1500 |
| Blowing pressure | kg/cm2 | 35 |
| Air consuming | Itr/min | 7400 |
| AIR DRYER | Operating pressure | kg/cm2 | 2-4 |
| Temperature | | 10-12 |
| Consuming | kcal/hr | 11400 |
| Flow rate | Itr/min | 90 |
| WATER CHILLER | Operating pressure | kg/cm2 | 2-4 |
| Temperature | | 30 |
| Consuming | kcal/hr | 54000 |
| Flow rate | Itr/min | 180 |
| MACHINE | Machine size | mm | 3150-2150-2200 |
| Machine weight | kg | 4500 |
| REMARKS | 1. All data standard infication for0.6L bottle. 2. The actual output depends on the preform quality and bottle shape. 3. Specifications are subject to change without notice. 4. Please provide the stable ambient temperature. |
A.Stable performance with advanced PLC.
B.Conveying preforms by hands.
C.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D.High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E.High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H.Strong clamping force with high pressure and double crank links to lock the mold.
I.Two ways of operating: automatic and manual.
J.Safe,reliable and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K.Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L.Contamination is avoided for the bottle body.
M.Ideal effect of the chilling with the chilling system.
N.Easy installation and starting
O.Low rejection rate: less than 0.2 percent.
Mold
Our mold producing center produces exact mold ,adopts the high grade material to make.
The perform mold inside uses the imported steel, the surface’s brightness is very high and the service time is very long.
The design of equipment is logical, easily operation.
High level automation , using famous imported hydraulic , electrical, sealing parts, the trouble will be less .
No matter what the product ’s outside or inside, they can get the best guarantee, the good products rate can be above 99%.
