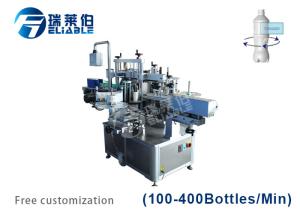

Hot melt labeling machine 6000-18000 bottles/hour
Hot melt labeling machine Features:
1. The adjustment of label cutting blade is easy and simple;
2. Vacuum-grip cylinder is made of high hardness material, the additional old handler can reduce the frictions of labels and prevent static electricity;
3. The change-over of spare parts can be finished within 10minutes;
4. The position of cutting blade can be quickly and accurately adjusted by manual control cabinet;
5. Vacuum-grip cylinder and cutting unit adopt special materials which are wear proof and heat protection;
6. The self-adjustment knob can reset the l-MARK position while change the cutting length of labels;
7. Label type: OPP label in rolls
Hot melt labeling machine Parameters
| Production speed | 1-30m/min |
| Labeling accuracy | ±1mm |
| Labeling max width | 120mm |
| Weight | 1500KG |
| Label inner diameter | cp76.2mm |
| Label outer diameter | cp350 mm |
| Outline size | 3000*1500*2000 mm |
| Using power | 380 V 50Hz 800W |

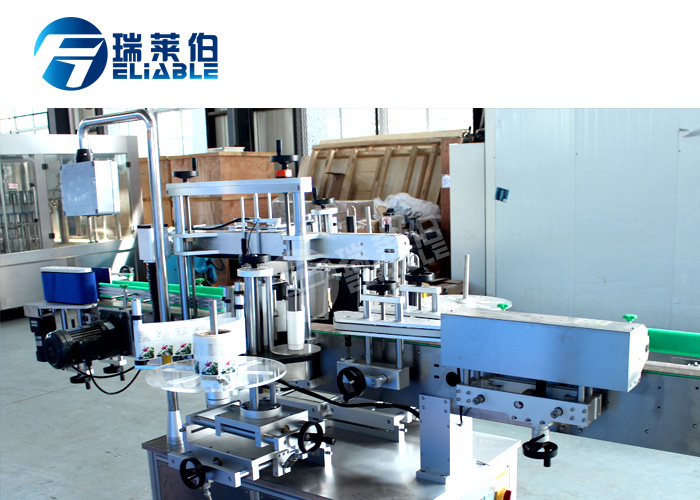

Hot melt labeling machine Details
About our company
Our company has years of design experience and numbers of proprietary technologies. Reliable has been always committing himself to offer varies stand-alone devices and complete solution to drinks and brewers makers since establishment.No matter whether it is water filling, hot filling,Carbonated filling and aseptic cold filling, or in recent years the development of PET bottles and glass bottles of alcoholic filling line and oil filling line.Reliable is able to provide you all kinds of consummate projects and service!
Our Service
1.We can customize the special size according to customer's demands.
2.Answer your any question on us within 24 hours.
3.Supply all information you required.
4.Machines video for reference.
5.Welcome to visit factory, and see the machine running.
6.Machines testing running over 8 hours, and sending testing videos.
7.Engineer arranged to install machines.
8.Spare Parts provided.
9.one year warranty.
